SwarmKit¶

Multi-agent AI swarms as YAML, not code.

Define agents, skills, and governance in a topology file. SwarmKit compiles it to LangGraph and runs it.

The problem¶

Building multi-agent systems with LangGraph means writing hundreds of lines of Python for every topology: node functions, edge routing, state management, tool wiring, governance, error handling. Change the agent structure and you're refactoring code, not configuration.

The fix¶

# A complete 10-agent code review swarm. No Python.
apiVersion: swarmkit/v1
kind: Topology
metadata:
  name: code-review
agents:
  root:
    id: supervisor
    archetype: supervisor-leader
    children:
      - id: engineering-leader
        archetype: engineering-leader
        children:
          - id: code-reviewer
            archetype: code-analyst
            skills: [code-quality-review, security-scan]
          - id: github-reader
            archetype: github-reader
            skills: [github-pr-read]
      - id: qa-leader
        archetype: qa-leader
        children:
          - id: test-analyst
            archetype: test-analyst
            skills: [test-coverage-review, run-tests]

uv tool install swarmkit-runtime
swarmkit run my-swarm/ code-review --input "Review PR #49"

SwarmKit compiles this YAML to a LangGraph StateGraph, wires MCP tool servers, enforces governance policies, and runs the swarm. You keep the full power of LangGraph (checkpointing, streaming, state management) without writing the boilerplate.

Why SwarmKit over alternatives¶

	SwarmKit	LangGraph (raw)	CrewAI	Claude Agent SDK
Agent definition	YAML topology	Python code	Python classes	Code + config
Multi-agent orchestration	Declarative hierarchy + DAG	Manual graph construction	Role-based	Single agent loop
Tool integration	7,000+ MCP servers via YAML config	Build or wire yourself	Built-in + MCP	Built-in harness + MCP
Governance / permissions	IAM scopes + policy engine (AGT)	DIY	None	None
Audit trail	Hash-chained, append-only	DIY	None	None

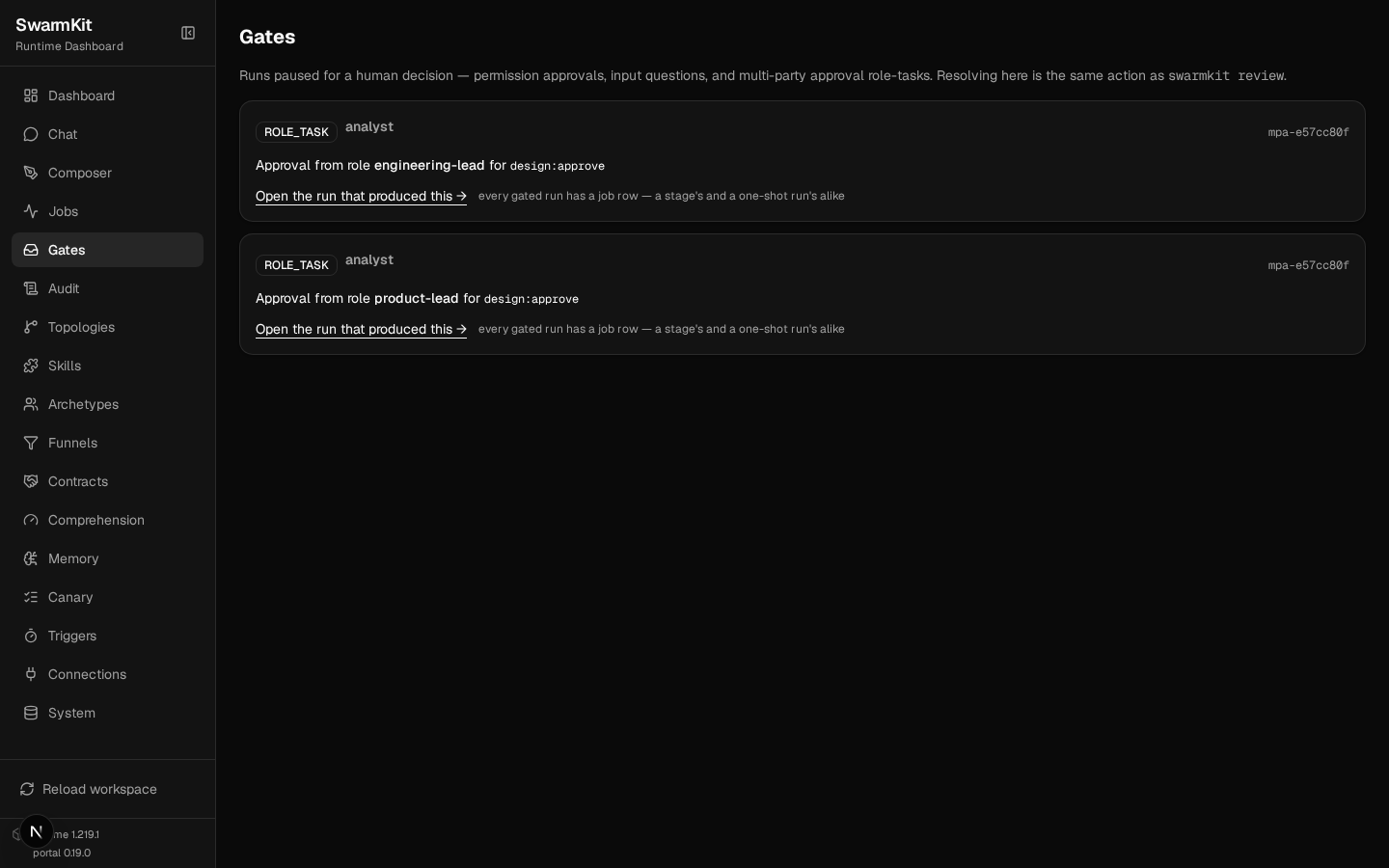

Human-in-the-loop	Native approval gates in YAML	Manual interrupt points	None	None
Escape hatch	`swarmkit eject` to pure LangGraph (planned)	N/A	None	None
Model support	7 providers (Anthropic, OpenAI, Google, Ollama, ...)	Any	Multiple	Claude only

Quick start¶

Install¶

curl -LsSf https://astral.sh/uv/install.sh | sh   # install uv if you don't have it
uv tool install swarmkit-runtime

Create and run a swarm¶

# Create a workspace through conversation (you never write YAML)
swarmkit init my-swarm/

# Run it
swarmkit run my-swarm/ my-topology --input "Do the thing"

# Or use the reference code review swarm out of the box
swarmkit run reference/ code-review --input "Review PR #49 on delivstat/swarmkit"

30-second workflow¶

swarmkit init my-swarm/                                # conversational workspace creation
swarmkit validate my-swarm/ --tree                     # validate + show agent tree
swarmkit run my-swarm/ my-topology --input "Greet us"  # run end-to-end

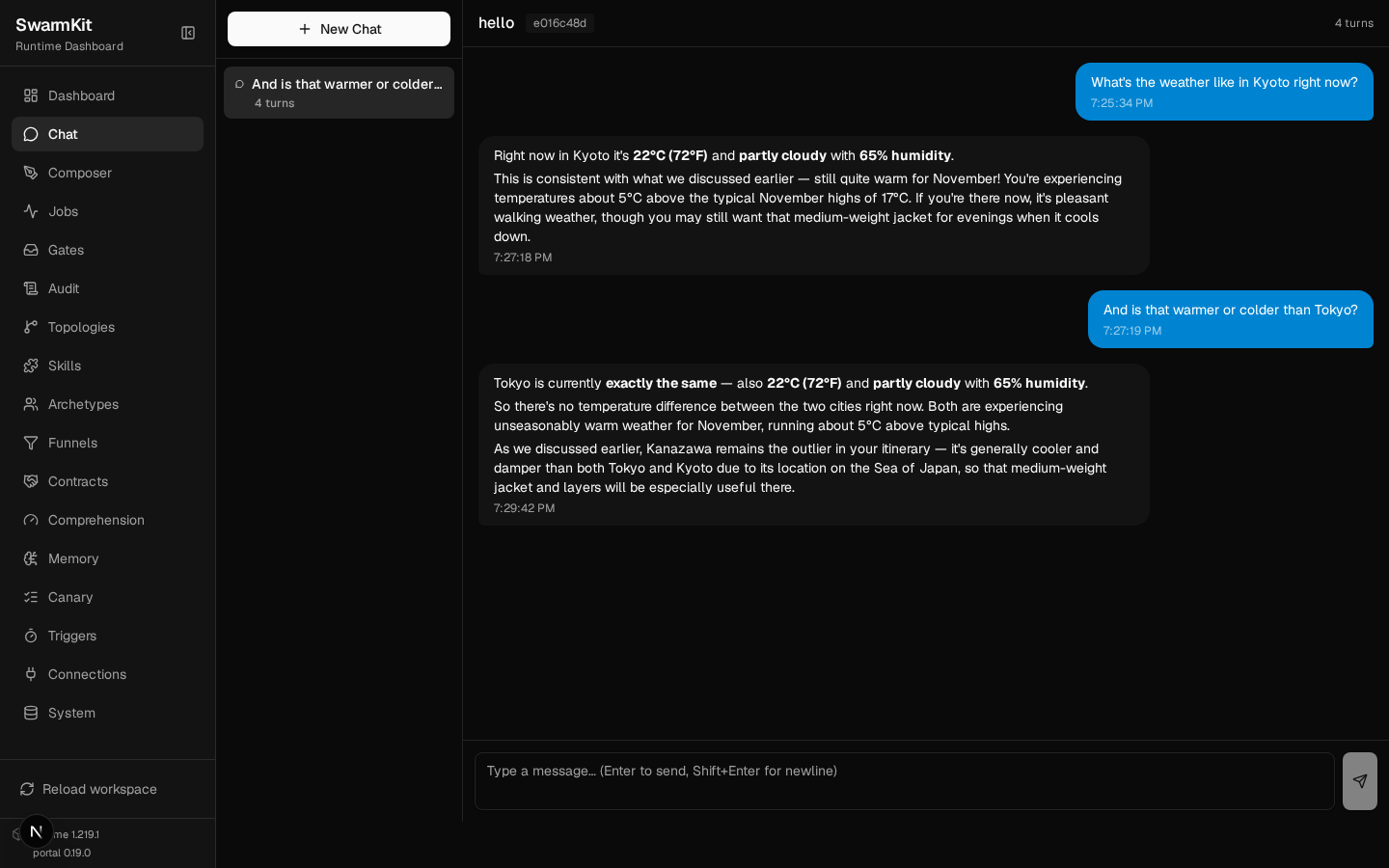

swarmkit chat my-swarm/ my-topology                    # multi-turn conversation
swarmkit author skill my-swarm/                        # add skills conversationally
swarmkit edit my-swarm/ --input "Add a security scan"  # modify via conversation

How it works¶

SwarmKit architecture

Key features¶

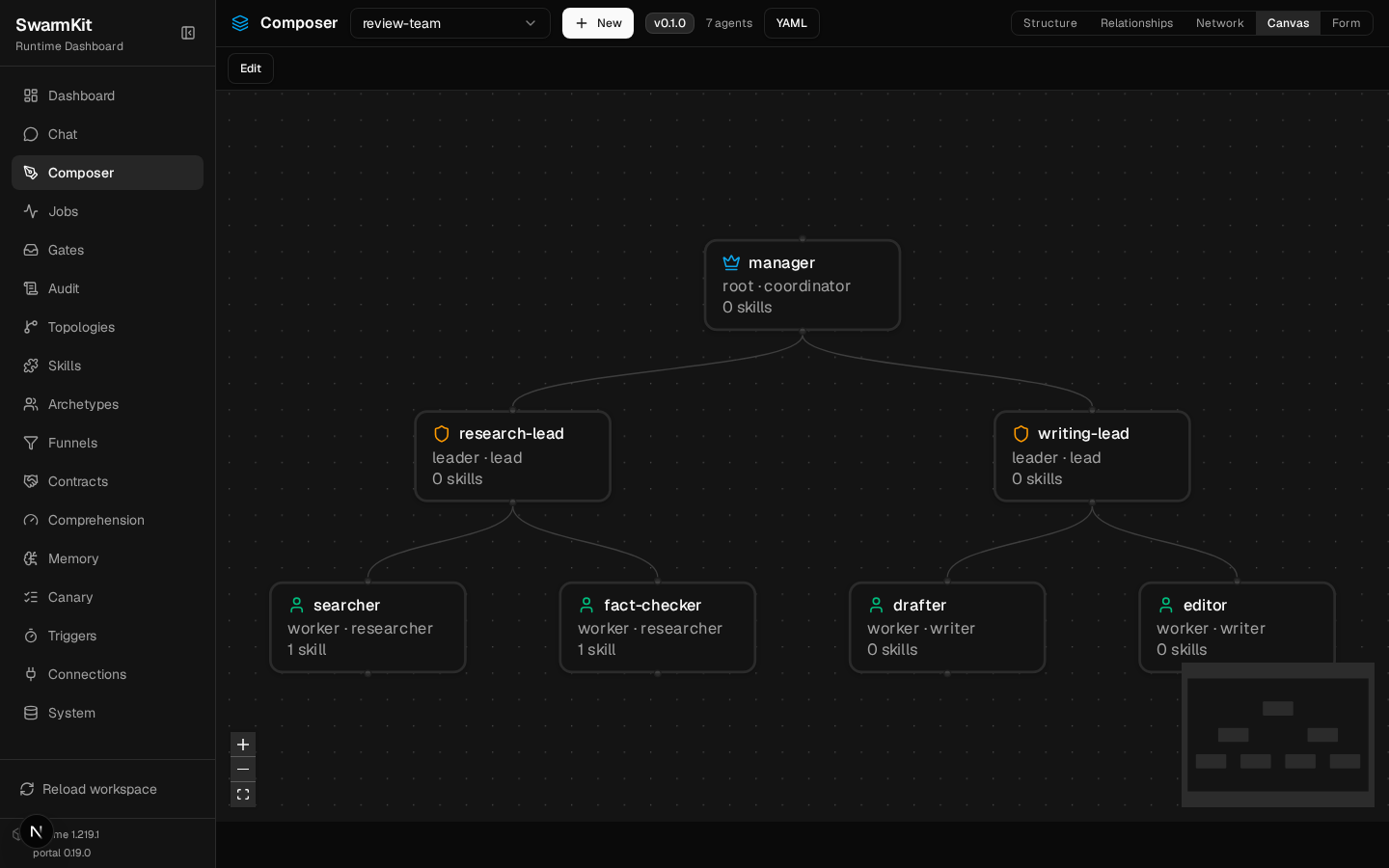

Topology as data¶

Swarms are YAML files, not Python. Declare agents, hierarchy, skills, model preferences, and IAM scopes. The runtime interprets them — no code generation.

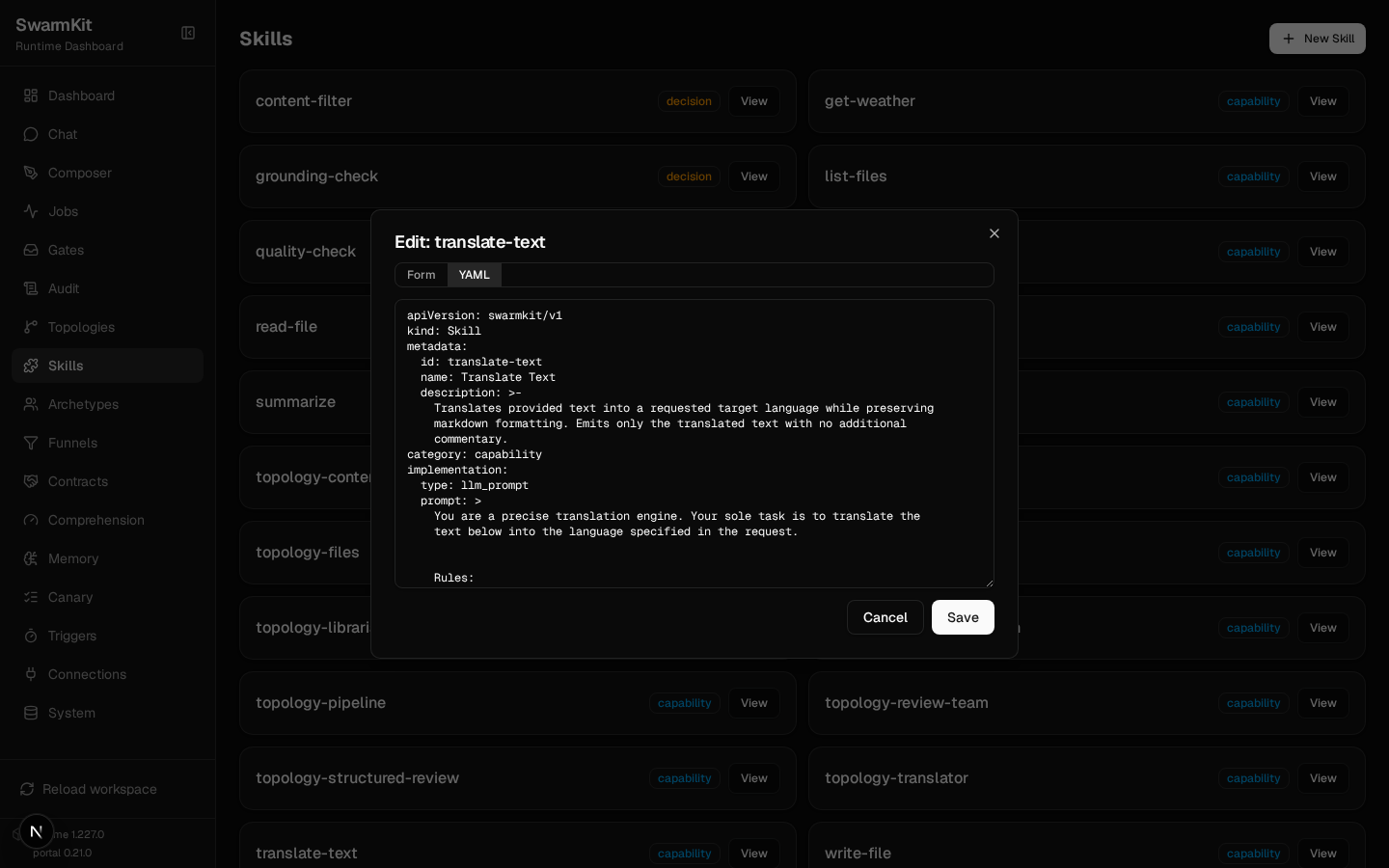

Skills as the only extension¶

Need custom logic? Write a skill (LLM prompt or MCP server), not a Python plugin. SwarmKit's CLI can even write skills for you:

swarmkit author skill my-swarm/                # single-agent authoring
swarmkit author skill my-swarm/ --thorough     # multi-agent authoring swarm
swarmkit author mcp-server my-swarm/           # generate an MCP server

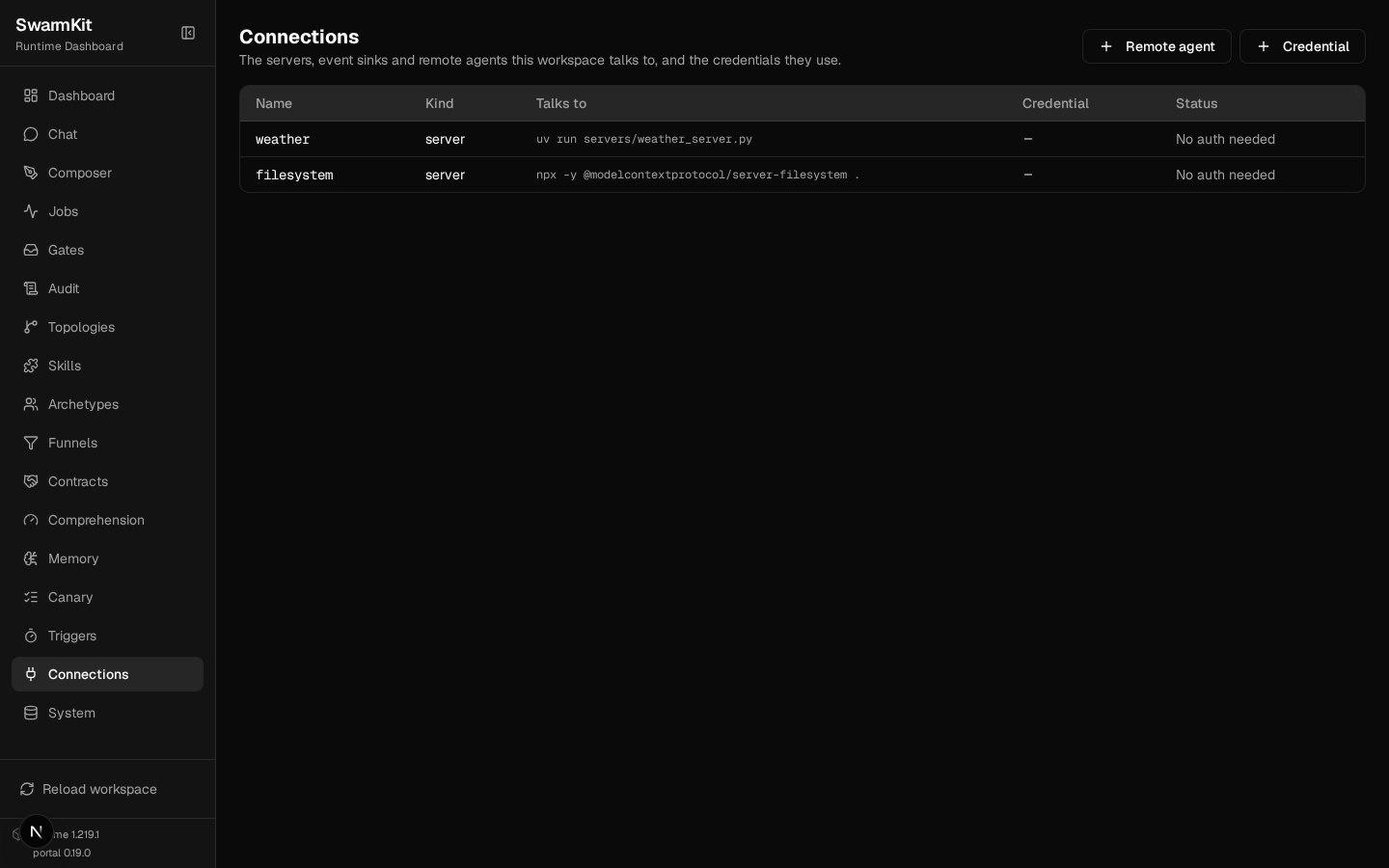

7,000+ tools via MCP¶

Wire any MCP server in YAML. GitHub, databases, Slack, browsers, filesystems — no building tools from scratch:

mcp_servers:
  - id: github
    transport: stdio
    command: ["npx", "-y", "@modelcontextprotocol/server-github"]
    env:
      GITHUB_PERSONAL_ACCESS_TOKEN: "${GITHUB_TOKEN}"

Sandboxed execution available: sandboxed: true runs MCP servers in Docker with --network=none and read-only mounts.

Governance built in¶

Every tool call goes through evaluate_action before execution. IAM scopes per agent. Hash-chained audit trail via Microsoft AGT. Mock provider for dev, AGT for production:

governance:
  provider: agt
  config:
    policies_dir: ./policies

7 model providers¶

Auto-detected from environment variables. Mix providers within a single topology:

Provider	Env var	Example
Anthropic	`ANTHROPIC_API_KEY`	`claude-sonnet-4-6`
Google	`GOOGLE_API_KEY`	`gemini-2.5-flash`
OpenAI	`OPENAI_API_KEY`	`gpt-4o`
OpenRouter	`OPENROUTER_API_KEY`	`meta-llama/llama-3.3-70b-instruct`
Groq	`GROQ_API_KEY`	`llama-3.3-70b-versatile`
Together	`TOGETHER_API_KEY`	`meta-llama/llama-3.3-70b`
Ollama	(always available)	`llama3.3`

Observability (M6 — shipped)¶

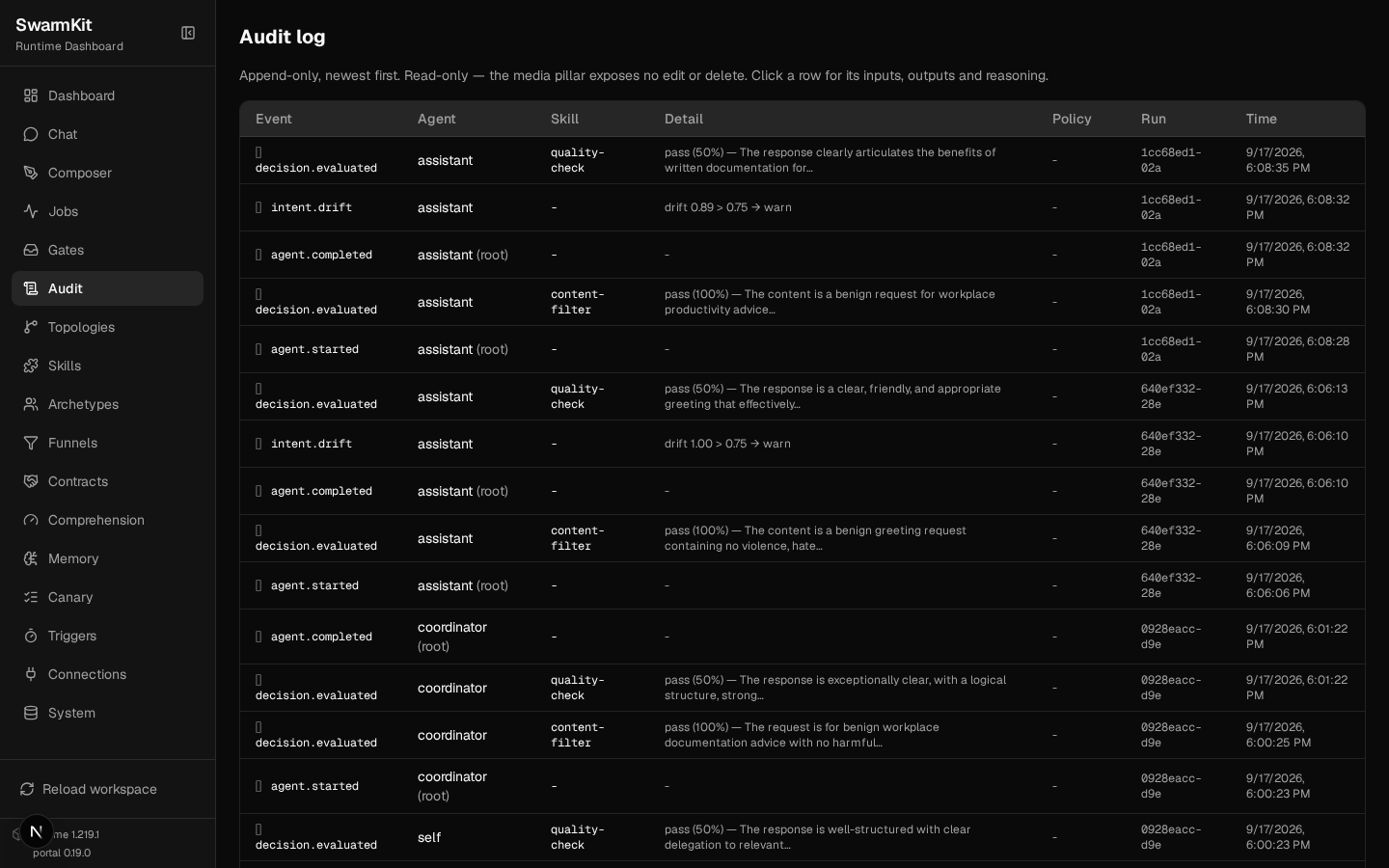

Every run records structured audit events to SQLite. OpenTelemetry traces, metrics, governance circuit breakers, notifications, and a local prompt ring buffer are built in.

swarmkit status my-swarm/                      # recent runs from audit store
swarmkit logs my-swarm/ --last 3               # detailed events (--run-id, --agent filters)
swarmkit why <run-id> my-swarm/                # LLM explains what happened
swarmkit ask "Which agents are slowest?" -w .  # conversational observer (--run scoping)
swarmkit debug my-swarm/ --span-id <id>        # retrieve prompts locally
swarmkit review list my-swarm/                 # pending human reviews
swarmkit gaps my-swarm/                        # recorded skill gaps

Coming soon: OpenTelemetry integration (traces + metrics), intent drift detection, local prompt ring buffer, governance circuit breakers.

Reference topologies¶

Ships with production-quality topologies you can use immediately:

Code Review Swarm — 3 leaders (Engineering, QA, Ops), 10 agents. Fetches PRs via GitHub MCP, reviews code quality + security + test coverage, HITL approval for deployment:

swarmkit run reference/ code-review --input "Review PR #49 on delivstat/swarmkit"

Skill Authoring Swarm — 6 specialist agents create SwarmKit artifacts through conversation, grounded by the Knowledge MCP Server:

swarmkit author skill my-workspace/ --thorough

16 archetypes and 20 skills included under reference/.

Real-world example¶

The examples/sterling-oms/ workspace demonstrates reasoning over 1,000+ API javadocs with multiple MCP servers (ChromaDB vector search, FTS5 keyword search, CDT config server) — a production-grade setup for enterprise domain knowledge.

Roadmap¶

See the Implementation Plan for the full 4-phase roadmap.

Phase 1 — Foundation (complete)¶

#	Milestone	Status
M0	Schemas (5 artifact types, dual-language validators, codegen)	Done
M1	Topology loading and resolution	Done
M2	GovernanceProvider + AGT integration	Done
M2.5	ModelProvider abstraction (7 built-in providers)	Done
M3	LangGraph compiler (capability + coordination + DAG)	Done
M3.5	Conversational authoring (`swarmkit init/author/edit`)	Done
M4	Decision skills, structured output, review queue, HITL	Done
M5	MCP integration (stdio + HTTP, sandboxed servers, governance gating)	Done

Phase 2 — Runtime completion (current)¶

#	Milestone	Status
M6	Observability: AuditProvider, OTel traces + metrics, ring buffer, circuit breakers, notifications, CLI rewrite, audit redaction	Done
M6.5	Workspace env configuration: `workspace.env.yaml` + `SWARMKIT_ENV` switching	Done
M7	Intent drift detection: IntentObserver, schema extension, compiler wiring, authoring integration	Done

Phase 3-4 — Ecosystem + production readiness¶

#	Milestone	Status
M8	Knowledge + skills ecosystem: skill registry CLI, user knowledge server	Planned
M9	Reference topologies: code review + skill authoring swarms runnable e2e	Planned

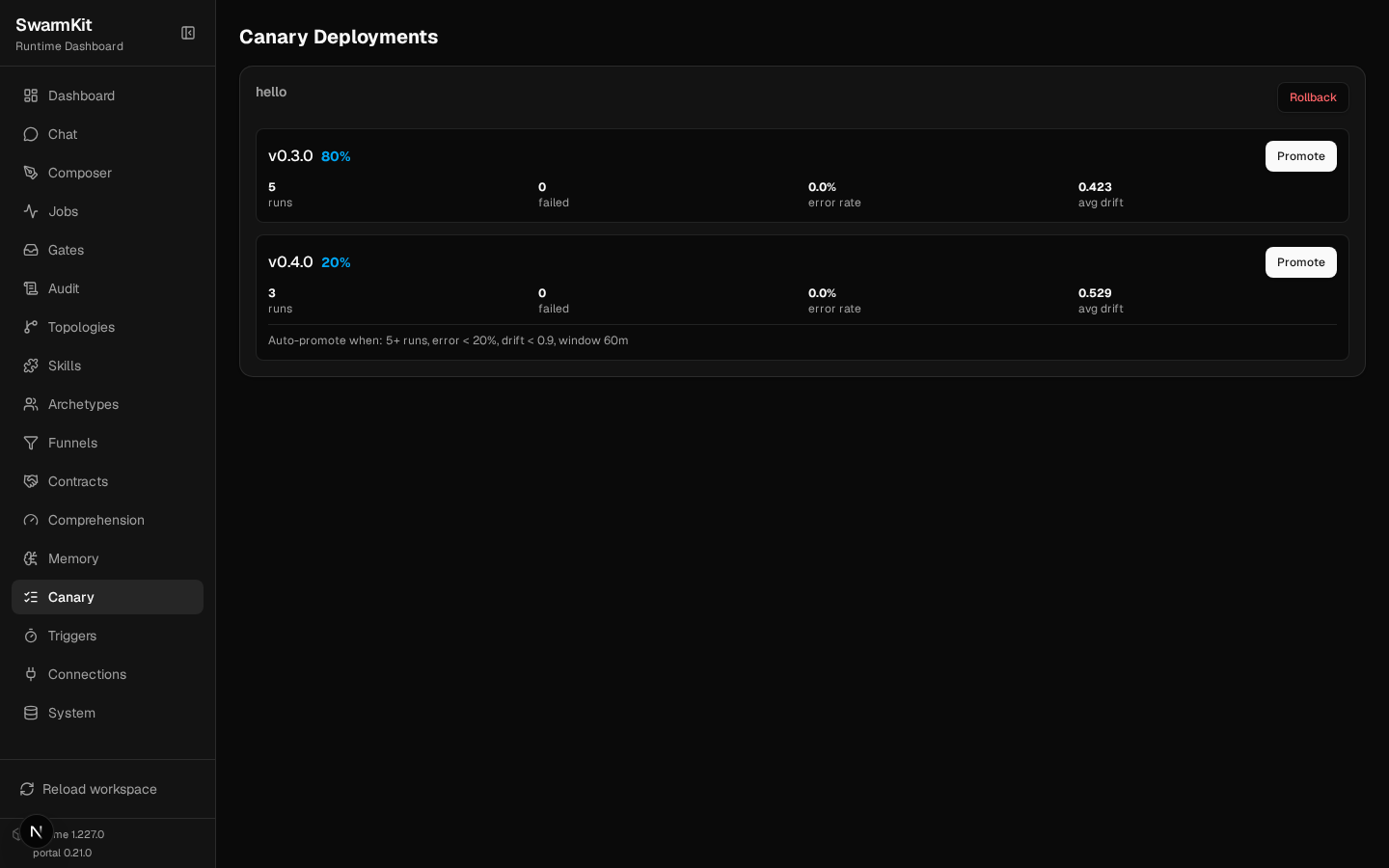

M10	Eject + execution modes: `swarmkit eject`, HTTP server, canary deployments	Planned
M11	Launch prep: docs site, PyPI/npm publish, expertise packages	Planned

For LLMs¶

SwarmKit docs are designed for LLM consumption. The repo ships llms.txt at the root:

swarmkit knowledge-pack -o pack.md    # bundle everything for any LLM
swarmkit knowledge-server             # live MCP server for Claude Code / Cursor
